The station

FY5KE is located on a 2500 sq. meters lot in the leisure zone of the CSG (European Spaceport) in Kourou. There are now six towers 14m, 18m, 21m, 21m, 24m and 30m high.

Antenna Farm Oct 2019

Antenna Farm Oct 2013

Last improvements :

  • New fixed EU 5 elements mono-band DX-BEAM 10m has been plugged at the middle of 24m high 20m band tower for ARRL10m 2014.
  • New fixed US 5 elements mono-band DX-BEAM 10m has been plugged in the central 20m tower for ARRL10m 2014.
  • New 40m band tower during the CQWW SSB 2013. A 3 elements mono-band DX-BEAM has been plugged at the top of a new 30m high tower.
2013 New 30m Tower with 3 elts

New 40m Band Tower

  • New 20m band tower during the CQWW SSB 2013. A 5 elements mono-band DX-BEAM has been plugged at the top of a new 24m high tower.
New 27m Tower Oct2013_SiteKE

New 20m Band Tower

  • New 15m band tower during the CQWW SSB 2013. A 6 elements mono-band DX-BEAM has been plugged at the top of a new 21m high tower.
2013 New 15m band tower with 6 elts

New 15m Band Tower

  • Replacement of our 10m band tower during the ARRL DX SSB 2013. A 7 elements mono-band DX-BEAM has been plugged at the top of a new 18m high tower.
  • New fixed US 5 elements mono-band DX-BEAM 15m has been plugged in the central 20m tower for ARRL DX 2013.

New 10m Band Tower

  • Replacement of our Shunt fed tower 160m by a 27m Titanex vertical for the CQWW SSB 2009.

Titanex V160E

  • New Computers with LCD Monitors and ELECRAFT K3 replacing our old TS850s.
  • Replacement of the 3 EL Quad by a 5 EL Monobander for the ARRL DX 2005.
  • Replacement of the sloper 80m by 2 elements Vertical Phased Array for the CQWW DX 2005.

A bit of history

The first M/S effort at FY5KE was the CQWW DX SSB contest in 2000.

We ran with only 2 stations :

  • TS-870 and a TL-922 Amplifier
  • TS-850 and an AL-80 Amplifier

Only multi-band antennas (FB-33 and GPA-30) and single dipoles were used, no Beverage ! !

It was only a first and amazing experience on the DX side of the pile-up.

For the CQWW DX SSB contest 2001 “The Warm-up” ,4 stations were set up, and new antennas tested :

  • TS-850 and an AL-1500 Amplifier
  • TS-870 and a TL-922 Amplifier
  • TS-850 and an AL-811 Amplifier

Antennas were :

  • 160 m : 4sq (sloperized …)
  • 80 m : Loop + wires
  • 40 m : 2 el wire fix North / 4sq
  • 20 : 2 el @ 22m
  • 15 m : Quad 3el @ 15m
  • 10 m : Quad 3 el @ 15m
  • Mult : FB33 shortened FB32 (14 MHz removed)
  • And for the first time two beverages :
  • Eu : 320 m
  • W6 : 180 m

After 1 year off, we came back in 2003, and worked hard to improve again the FY5KE station. We specially enjoyed the low bands with our new 6 beverages system, each of them being possibly listened by every operating position.

4 stations were set up with spare :

  • TS-850 and an AL-1500 Amplifier
  • TS-850 and an AL-1500 Amplifier
  • TS-870 and a HL-2K Amplifier
  • TS-850 and a LK-500 Amplifier
  • Spare TS-850

We also improved our antennas :

  • 160m : 25m Shunt-fed tower
  • 80m : Sloper
  • 40m : 2 El
  • 20m : 4 El monobander
  • 15m : 3 El Quad
  • 10m : 5 El monobander
  • RX : 6 beverages (2 for US, 2 for EU, 1 for JA, 1 for AF).

FY5KE shack snapshots taken during the CQWW SSB 2004 :

The station is fully assembled before the contest and totally unplugged after the contest. A lot of cables to connect ! !

The 1st running station with a TS-850 (Dru2-equipped) with OM7ZZ microHAM micro band decoder, ICE and home-made switchable filters and AL-1500 amplifier.

Running Station #1

The spare running station (also Mult3 station) is also granted with a TS-850 with OM7ZZ microHAM micro band decoder, MFJ-434 DVK, ICE and home-made switchable filters and AL-1500 amplifier.

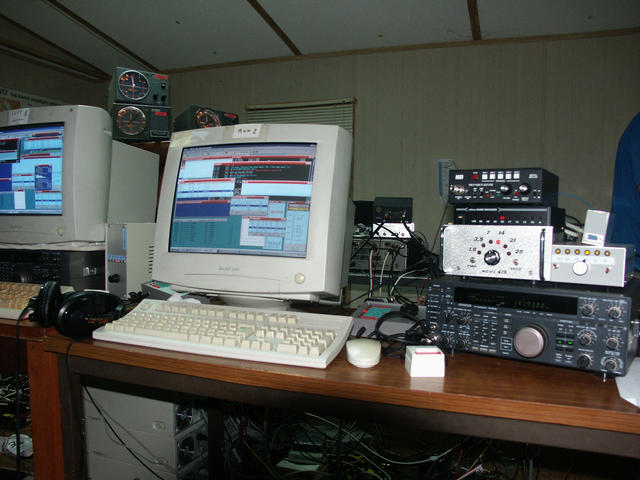

Running Station #2

The In-band multiplier station, with home-made W3LPL style RX switchable filter, is located in the middle of the 2 running positions.

In-Band Station

There are also two other multiplier stations :

  • One with TS-850 , MFJ-434 DVK, ICE filters and HL-2K amplifier

Multiplier Station

  • One with TS-850 , MFJ-432 DVK, ICE filters and LK-500 amplifier

No picture…

The computing network at FY5KE

A bit of history

The first real M/S effort at FY5KE was the CQWW DX SSB contest in 2000. At that time, the RACK (Radio Amateurs Club of Kourou) was owning a single 386 MS-DOS machine with a 15-inch monitor. Marc F1HAR and HervĂ© F5HRY brought their own laptops from France, and the local members dismantled their own stations to give their screens and/or keyboards for the contest duration. FY5KE was using the current version of CT, and serial networking was a real challenge ! No integrated packet, no controlled radios. They call it “the stone age”.

Later on, during the next CQWW SSB 2001, a DX Cluster access was provided by an UHF link with Didier FY5FY’s home where a dialup gateway was installed. CT was still in use, and Olivier F5MZN was finally mastering the Ethernet network. The CT stability was so-so, but no other serious alternatives were offered at that time. We even developped some CT add-ons to ease the French keyboards use. The ARRL DX SSB contest 2002 was the last contest CT was used. For this contest, we brought from France one or two cheap computers (PII 266), screens, and accessories, dedicated to remain at FY5KE station.

CT has always been used by the team members for years. We all learned contest logging with CT, and used it in various locations like TM5C (ex TM1C), TM2Y, TM1W, CT8W, etc… Ken’s tool was a reference for all serious contesters, but even if Windows was more present in modern computers, we were a bit disappointed that the coming versions were still running under MS-DOS or in a console window, and there were no major improvements planned, especially for M/S teams like ours.

In the meantime, Olivier F5MZN (the DX Cluster DXNet author), began to code from scratch a contest logging software in C++, for all Win32 OS : Win-Test was born.

FY5KE and Win-Test

All team members were always asking for more features on CT, but unfortunalty, even if CT became freeware, it was not open source, and we could not add anything significant to it. Olivier F5MZN decided to write a new contest software adapted to our needs : Win-Test.

 A typical operating position at FY5KE

After several coding attempts, the first version of Win-Test was privately out and used for the ARRL DX SSB contest 2003 . In the meantime, we sent few more computers in French Guiana by mail, and we brought screens and accessories with us. Even if small bugs appeared, we didn’t suffered any major crash and never had to reboot during that contest. We even won the World M/S category. Not so bad for a first try…. Olivier wanted to keep the CT ease of log navigation, and also used most of its keyboards shortcuts. We then decided to share Win-Test with the contest community for a modest fee. Along the time, many features were added. In mid-2003, Laurent F6FVY learned C++ the hard way, helping Olivier developement turntime. Marc F1HAR and HervĂ© F5HRY wrote and maintained documentation and quickstart guide on the web site https://www.win-test.com). Amongst other individuals and contest teams, the IARU Headquarters French station TM0HQ also uses Win-Test in a WAN (Wide Access Network) setup across France since 2003 during the IARU Championship.

Current computers setup at FY5KE (Nov 2004)



                    The Theory                                                        … And the reality !

  • 5 x (PII 266 MHz / 64 M RAM + 17” CRT monitors)
  • 1 x Dialup Internet gateway for DX Cluster access
  • 1 x 10/100 MBits/s switch
  • 2 x 10 MBits/s hubs (spare)
  • 1 x WiFi link between the WT network and the Internet gateway

All radios (TS 850) are interfaced with Win-Test, with home made or MicroHam band decoders. The running stations sound is recorded in MP3 on their respective computer. MFJ-432 voice keyers are also interfaced with Win-Test.

Future improvements

We intend to replace our 15m band tower by a new 20m High with a 6 elements DX-BEAM monobander plug on it.
